Vista en vivo de 16 canales y salida de video HDMI 4K
16 puertos PoE+ de 10/100 Mbps con presupuesto PoE de 90 W △
Capacidad de decodificación de hasta 8 canales a 2 MP (25 fps) / 4 canales a 4 MP (25 fps)

Entrada de vídeo IP	16-Channel
Ancho de banda entrante	80 Mbps
Ancho de banda saliente	60 Mbps
Resolución de salida HDMI	1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Resolución de salida VGA	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Modo de salida de video	HDMI/VGA Simultaneous Output
Pantalla multivista	1/4/6/8/9/16
DESCODIFICACIÓN
Compresión de Audio	G.711A/G.711U/G.726
Compresión de Video	H.265+/H.265/ H.264+/H.264
Resolución de registro	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
	2CIF/CIF/QCIF
Reproducción sincrónica	16-Channel
Capacidad	25fps:
	2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
	30fps:
	4-ch @ 3MP, 2-ch @ 5MP
Administración de Grabación
Modo de grabación	Manual Recording, Scheduling Recording, Motion Detection Recording
Modo Playback	Instant Playback, Regular Playback, Tag Playback, Event Playback
Modo de Respaldo	Regular Backup, Video Clip Backup
Función Playback	Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
	Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
RED
Protocolo	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI
External Interface
Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1
DISCO DURO
SATA	2 SATA Interfaces
Capacidad	Up to 10 TB Capacity for Each HDD
PoE
Standard	802.3at/af Compliant
Interface	1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	90 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm	Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection,
	Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm	Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage	Recording, White Light Alarm, Buzzer, Log, Audible Alarm
GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Contenido del Paquete	VIGI Network Video Recorder
	Power Adapter
	Power Cables
	HDD Power Cables
	HDD Data Cables
	Mounting Accessories
	Mouse
	Quick Installation Guide
Working Temperature	NVR: -10–55 °C
	Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensiones (An x Pr x Al)	330 × 285 × 45 mm
Peso neto	1.9 Kg
Peso bruto	3.2 Kg
Power Supply	53.5V DC/2.43A
Consumo de energía	6.2 W (Without Disk)
	40 W (With Disk)
Certificaciones	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

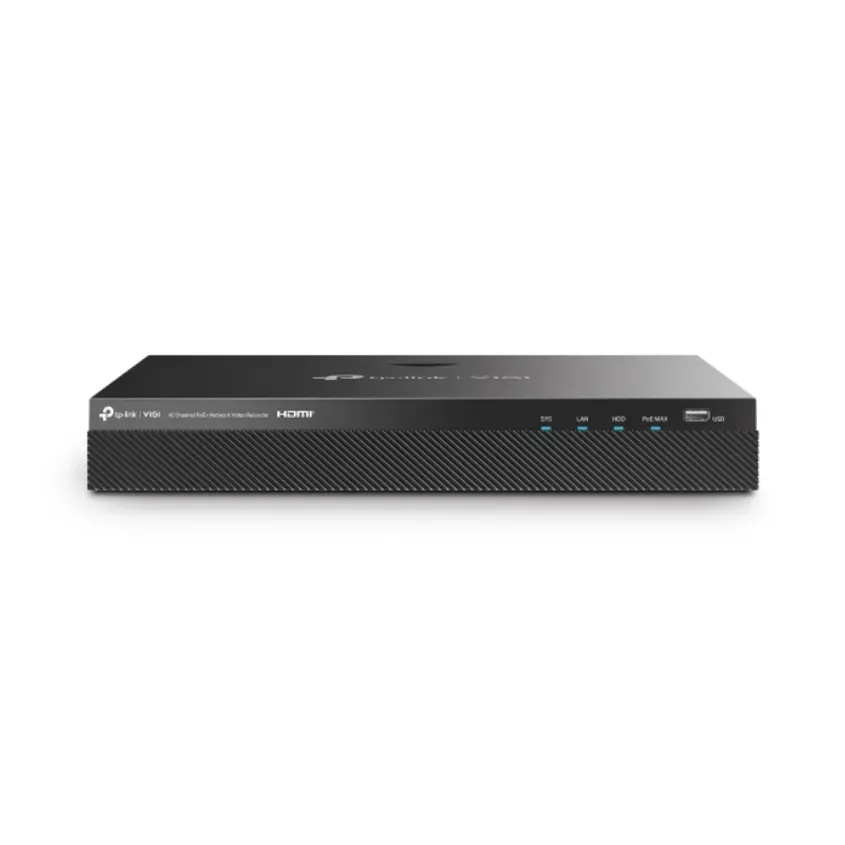

VIGI NVR2016H-16P 16 CH con puertos PoE+ y doble bahia de HDD

Descripción
